Item no.
VD 390 EC SORT

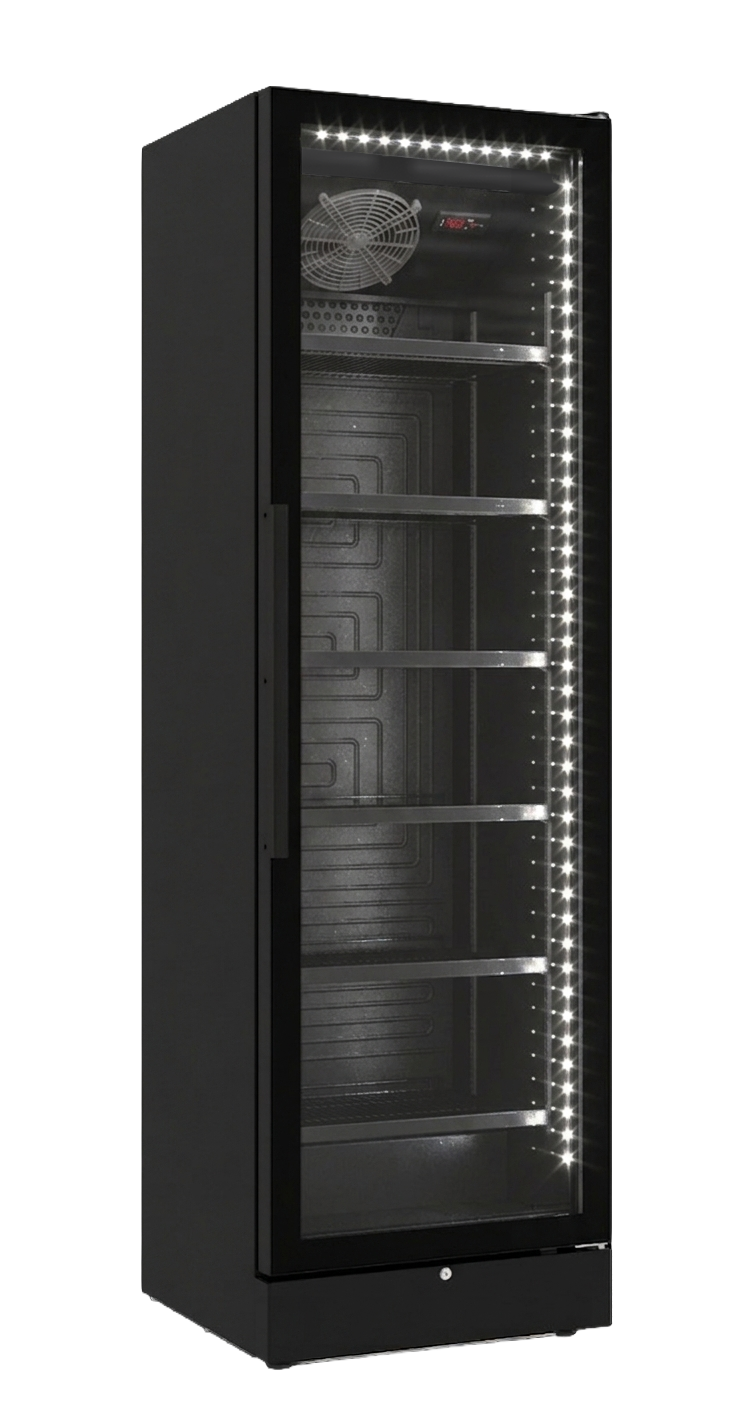

Energy-efficient display cooler with black interior
Detailed description pending
Dimensions, volume and weight
| Net volume | 403 l |
| Gross volume | 428 l |
| External dimensions (WxDxH) | 595 x 614 x 2005 mm |
| Internal dimensions (WxDxH) | 507 x 446 x 1761 mm |
| Package dimensions (WxDxH) | 610 x 670 x 2125 mm |
| Gross Weight | 120 kg |
| Net weight | 111 kg |
Performance and consumption
| Cooling temperature interval | 0 to 10 °C |
| Climate class | 4 |
| Energy consumption (kWh/year) | 580 kWh/year |
| Energy consumption (kWh/day) | 1.59 kWh/day |
| Noise level | 56 dB(A) |
| Temperature class | H1 |
| Execution | Ventilated |
Technical cooling specifications
| Refrigerant | R600a |
| Defrosting | Automatic |
| Defrosting, type | Natural |
Connection
| Input power | 220 W |
| Frequency | 50 Hz |
| Phases | 1 |
| Current | 1.6 A |
| Voltage | 230 V |
Design and materials
| Controller | Electronic |
| Exterior | Black / RAL 9005 |
| Interior | Black / RAL 9005 |
| Door | Hinged glass door |
| Doors, numbers | 1 pcs. |
| Doorframe | Frameless |
| Door, features | Self-close |
| Handels | Yes |
| Internal light | Yes |
| Light, effect | 4.8 W |
| Horizontal light, no. | 1 pcs. |
| Horizontal light, type | LED light at the top |
| Vertical light, no. | 2 pcs. |
| Vertical light, type | LED light vertical |
Equipment
| Shelf, type | Wire shelf |
| Number of shelfes | 6 pcs. |
| Shelf, width | 496 mm |
| Shelf, depth | 406 mm |
| Lock | Mechanical |
Approvals and standards
| EEI indeks | 34.9 % |
| Energy classification | C |
